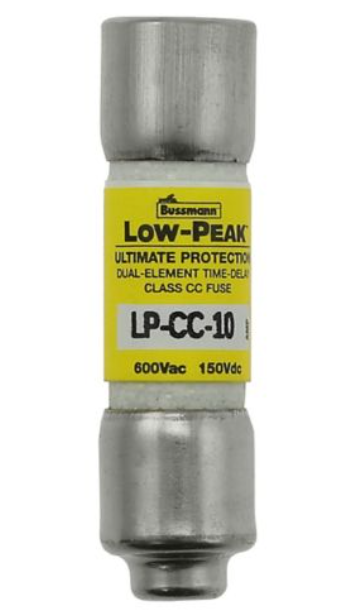

LP-CC Class CC Low-Peak™ time-delay, rejection-type fuses
Time-delay, current-limiting, rejection-type fuse — 12 seconds

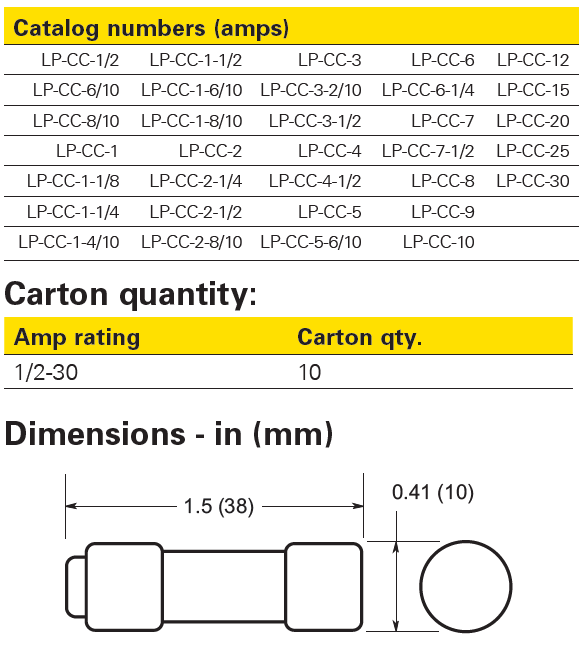

(minimum) at 200% rated amps. For dimensions, see page 1-3.
Ratings
• Volts
• 600 Vac (or less)
• 300 Vdc (1/2 to 2-8/10 A and 20-30 A)
• 150 Vdc (3-15 A)
• Amps 1/2-30 A
• IR
• 200 kA RMS Sym.
• 20 kA DC
Agency information
• UL Listed Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, Class 1422-02, File 53787,
RoHS compliant (20-30 A)*, CE
* Contact factory for RoHS compliance on other ratings.
(minimum) at 200% rated amps. For dimensions, see page 1-3.
Ratings
• Volts
• 600 Vac (or less)
• 300 Vdc (1/2 to 2-8/10 A and 20-30 A)
• 150 Vdc (3-15 A)
• Amps 1/2-30 A
• IR
• 200 kA RMS Sym.
• 20 kA DC
Agency information
• UL Listed Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, Class 1422-02, File 53787,
RoHS compliant (20-30 A)*, CE
* Contact factory for RoHS compliance on other ratings.
Features
• Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses
• Time-delay coupled with Class CC current-limiting response
provides close sizing on small motor and relay circuits, and
maximum component short-circuit current rating protection
• 200 kA interrupting rating provides high ratings for control circuit
locations
• Inventory consolidation of 13/32" x 1-1/2" supplemental fuses
reduces SKU investment and minimizes potential for misapplying
fuse
• Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit
Typical applications
• Branch circuit protection
• Specialized circuits
• Industrial controls and panels
• Isolated, in-line fuse holder
• Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses
• Time-delay coupled with Class CC current-limiting response
provides close sizing on small motor and relay circuits, and
maximum component short-circuit current rating protection
• 200 kA interrupting rating provides high ratings for control circuit
locations
• Inventory consolidation of 13/32" x 1-1/2" supplemental fuses
reduces SKU investment and minimizes potential for misapplying
fuse
• Selective coordination ratio of 2:1 (within Low-Peak fuse family)
prevents electrical shutdowns from extending beyond the failed
circuit
Typical applications
• Branch circuit protection
• Specialized circuits
• Industrial controls and panels
• Isolated, in-line fuse holder
