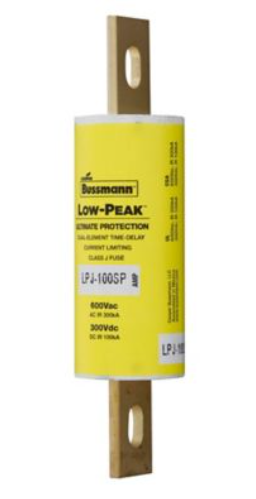

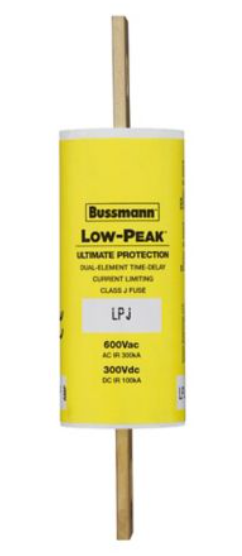

LPJ_SP Class J Low-Peak dual-element, timedelay fuses
Dual-element, time-delay Class J fuse; 10 seconds (minimum) at
500% rated amps, available with optional indication on select ratings

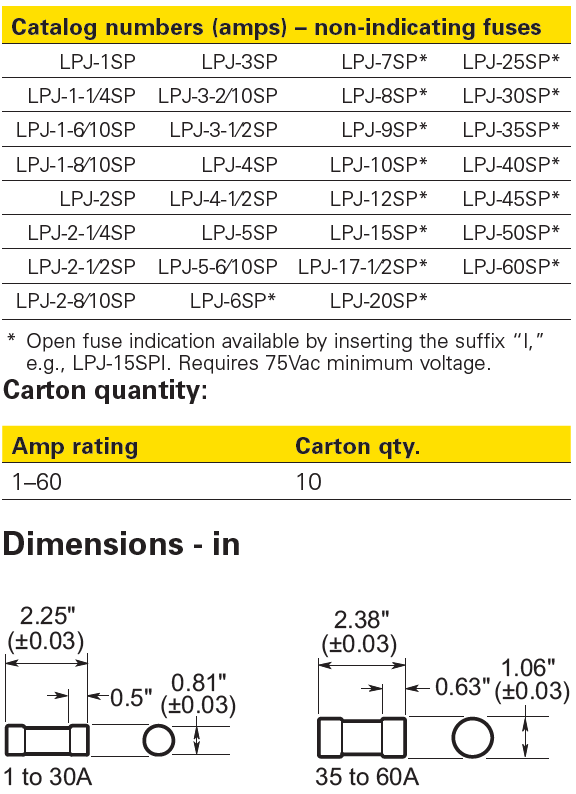

(see catalog numbers table).
Ratings
• Volts
• 600 Vac (or less)
• 300 Vdc (or less)*
• Amps 1-600 A
• IR
• 300 kA RMS Sym.
• 100 kA DC
* Does not apply to indicating versions.
Agency information
• UL Listed, Guide JDDZ, File E4273, CSA Certified Class J per
CSA 22.2 No 248.8, Class 1422-02, File 53787, RoHS compliant,
CE
