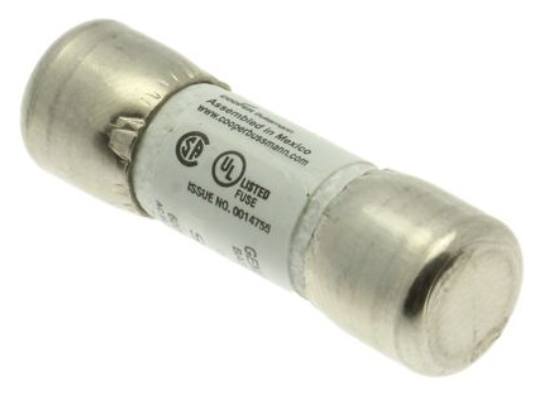

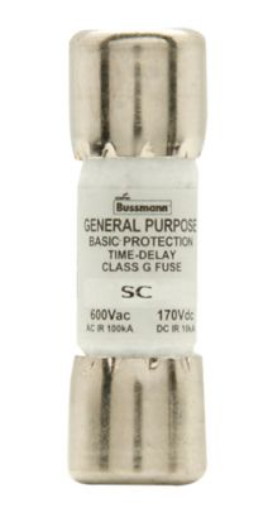

SC Class G general purpose fuses
Fast-acting (1/2-6 A) and time-delay (7-60 A) Class G fuses. SC fuses
are size rejecting measuring 13/32" in diameter by various lengths
associated with their amp rating ranging from 1-5/16" to 2-1/4". This

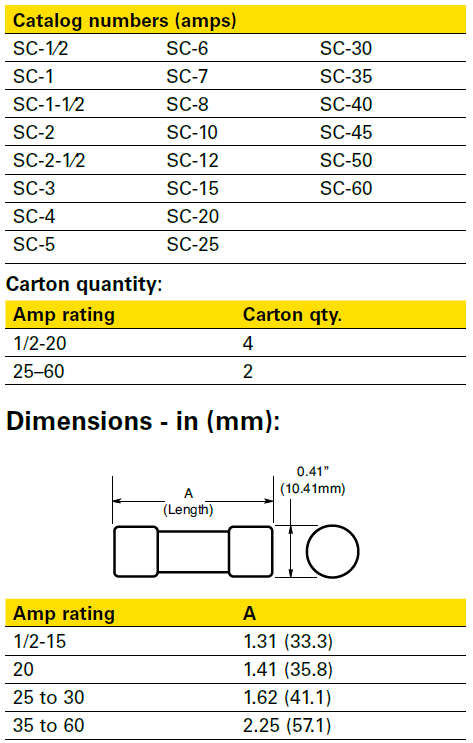

feature helps prevent overfusing. See the catalog numbers table for
length by amp rating.
Ratings
• Volts
• 600 Vac (1/2-20 A)
• 480 Vac (25-60 A)
• 170 Vdc (1/2-20 A)
• 300 Vdc (25-60 A)
• Amps 1/2-60 A
• IR
• 100 kA RMS Sym.
• 10 kA DC
Agency information
• UL Listed Std 248-5, Class G, Guide JDDZ, File E4273,
CSA Certified, Class 1422-01, File 53787, RoHS compliant, CE
are size rejecting measuring 13/32" in diameter by various lengths
associated with their amp rating ranging from 1-5/16" to 2-1/4". This
feature helps prevent overfusing. See the catalog numbers table for
length by amp rating.
Ratings
• Volts
• 600 Vac (1/2-20 A)
• 480 Vac (25-60 A)
• 170 Vdc (1/2-20 A)
• 300 Vdc (25-60 A)
• Amps 1/2-60 A
• IR
• 100 kA RMS Sym.
• 10 kA DC
Agency information
• UL Listed Std 248-5, Class G, Guide JDDZ, File E4273,
CSA Certified, Class 1422-01, File 53787, RoHS compliant, CE
Features
• Class G current limiting for component and branch circuit
protection
• 100 kA interrupting rating provides cost-effective branch circuit
fusing for systems with high short-circuit current levels
• Rejection feature with variations in length helps prevent overfusing
Typical applications
• Fusible branch circuit panelboards
• HVAC branch circuit protection
• Class G current limiting for component and branch circuit
protection
• 100 kA interrupting rating provides cost-effective branch circuit
fusing for systems with high short-circuit current levels
• Rejection feature with variations in length helps prevent overfusing
Typical applications
• Fusible branch circuit panelboards
• HVAC branch circuit protection
