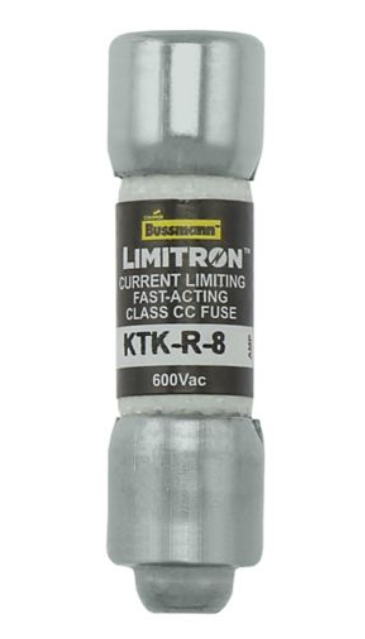

KTK-R Class CC Limitron™ fast-acting, rejection-type fuse
Fast-acting, branch circuit, rejection-type fuse. For superior electrical
protection.
Ratings
• Volts 600 Vac (or less)
• Amps 1/10-30 A
• IR 200 kA RMS Sym.
Agency information
• UL Listed, Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, File 53787, Class 1422-02, RoHS compliant, CE
protection.
Ratings
• Volts 600 Vac (or less)
• Amps 1/10-30 A
• IR 200 kA RMS Sym.
Agency information
• UL Listed, Std 248-4, Class CC, Guide JDDZ, File E4273,
CSA Certified, File 53787, Class 1422-02, RoHS compliant, CE
Features
• Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses
• Current limitation at Class CC levels provides maximum
component short-circuit current protection
• 200 kA interrupting rating provides high ratings for control circuit
locations
Typical applications
• Specialized circuits
• Industrial controls and panels
• Isolated, in-line fuse holders (street lighting)
• Class CC rejection feature, with appropriate fuse block, prevents
inserting lesser-rated supplementary fuses
• Current limitation at Class CC levels provides maximum
component short-circuit current protection
• 200 kA interrupting rating provides high ratings for control circuit
locations
Typical applications
• Specialized circuits
• Industrial controls and panels
• Isolated, in-line fuse holders (street lighting)
